Bridge Management System Malaysia: Civil Asset Guide

Published on October 5, 2026 | By Ir Vimal, Professional Engineer

Malaysia’s rapid socio-economic expansion relies heavily on its vast arterial network of elevated expressways, highway overpasses, and urban rail viaducts. From high-capacity transit links like the Klang Valley MRT and LRT networks to massive arterial corridors like the North-South Expressway (PLUS) and the Penang Bridges, these civil engineering structures sustain the nation’s daily economic productivity. However, managing post-tensioned segmental box girders, prestressed T-beams, and reinforced concrete piers under Malaysia’s punishing equatorial climate requires a data-driven, systematic asset governance framework: a modernized Bridge Management System (BMS).

Operating elevated infrastructure in Peninsular and East Malaysia entails severe operational stresses, including relentless monsoon rainfall cycles, aggressive riverbed hydraulic scour, chloride-induced reinforcement corrosion in coastal zones, and accelerating carbonation. Without a rigorous, engineering-led BMS, minor superficial defects can rapidly degenerate into severe structural liabilities. This comprehensive guide outlines the operational standards, statutory compliance benchmarks, inspection workflows, and engineering strategies essential for managing elevated bridge assets across Malaysia.

1. Why a Specialized Bridge Management System is Critical in Malaysia

Bridges and elevated structures do not deteriorate linearly; they degrade along an exponential decay curve governed by environmental exposure and dynamic loading conditions. In Malaysia, elevated assets are subjected to distinct geographical and operational challenges that make standard visual monitoring obsolete:

• Equatorial Weathering and Micro-Cracking: Severe ambient thermal fluctuations between solar peak hours and torrential afternoon cloudbursts trigger repeated thermal shock. This cycle accelerates micro-cracking across exposed bridge decks and parapets.
• Hydraulic Scour and Substructure Undermining: Heavy monsoon events produce extreme hydrological discharge velocities in local river basins. Bridge piers anchored in alluvial riverbeds suffer intense scour, requiring continuous bathymetric and substructure integrity surveillance.
• Heavy Commercial Axle Loads: Chronic vehicle overloading along industrial arterial routes induces high cyclic fatigue in structural expansion joints, elastomeric bridge bearings, and deck slabs.
• Corrosion Acceleration: Marine environments along coastal highways—coupled with tropical humidity levels exceeding 80%—drive rapid atmospheric carbonation and chloride ingress, depassivating embedded rebar and causing catastrophic structural spalling.

2. Malaysian Regulatory Framework & Statutory Standards

Managing public and private elevated structures demands absolute adherence to Malaysian building legislation and statutory technical benchmarks. Structural oversight is governed by multi-agency frameworks designed to preserve public safety and structural resilience:

• Jabatan Kerja Raya (JKR) Bridge Inspection Guidelines: The Public Works Department mandates standardized condition rating frameworks (JKR Bridge Management System) assigning rating scores from 1 (excellent condition) to 5 (critical failure risk requiring immediate intervention or closure). Learn more about national infrastructure directives via Jabatan Kerja Raya Malaysia.
• Street, Drainage and Building Act 1974 (Act 133): Section 85A stipulates mandatory structural inspections for buildings and permanent elevated structures, requiring independent professional engineer appraisals to verify structural integrity throughout the asset lifecycle. Official statutory publications can be cross-checked at the Attorney General’s Chambers Legislation Portal.
• CIDB Standards and Eurocodes (MS EN): Malaysian civil construction and structural rehabilitation projects are bound by standards harmonized through the Construction Industry Development Board (CIDB), adopting Eurocodes (MS EN 1990, MS EN 1991, and MS EN 1992) for structural concrete assessment, action on structures, and seismic design provisions.

3. Core Components of an Engineering-Grade BMS

An effective Bridge Management System Malaysia deployment combines structural engineering discipline with cloud database management. Rather than treating maintenance as a reactive response to visible concrete failure, a BMS systematically tracks every structural element across five foundational modules:

1. Digital Inventory & As-Built Digital Twin: Recording comprehensive structural metadata, including structural typology (prestressed concrete box girder, balanced cantilever, composite steel truss), foundation types (driven micropiles, bored piles, caissons), construction materials, design live loads, and maintenance history.
2. Condition Rating Matrix: Standardized engineering audits categorize individual elements (deck slabs, piers, abutments, bearings, drainage scuppers) into deterministic degradation categories based on quantitative damage measurements.
3. Life-Cycle Cost Analysis (LCCA): Prioritizing maintenance capital expenditures by balancing minor preventive preservation against capital-intensive structural reconstruction. Early preventive interventions consistently lower lifetime maintenance expenditures by up to 60%.
4. Real-Time Structural Health Monitoring (SHM): Integrating IoT strain gauges, tiltmeters, accelerometers, and acoustic emission sensors along critical spans to monitor vibration frequencies, thermal displacement, and deflection under peak traffic hours.
5. Strategic Prioritization and Maintenance Scheduling: Algorithmic scoring that ranks bridge repairs based on structural criticality, traffic volume disruption, detour feasibility, and economic consequences of failure.

4. Advanced Structural Inspection Methodologies: NDT and Drone Audits

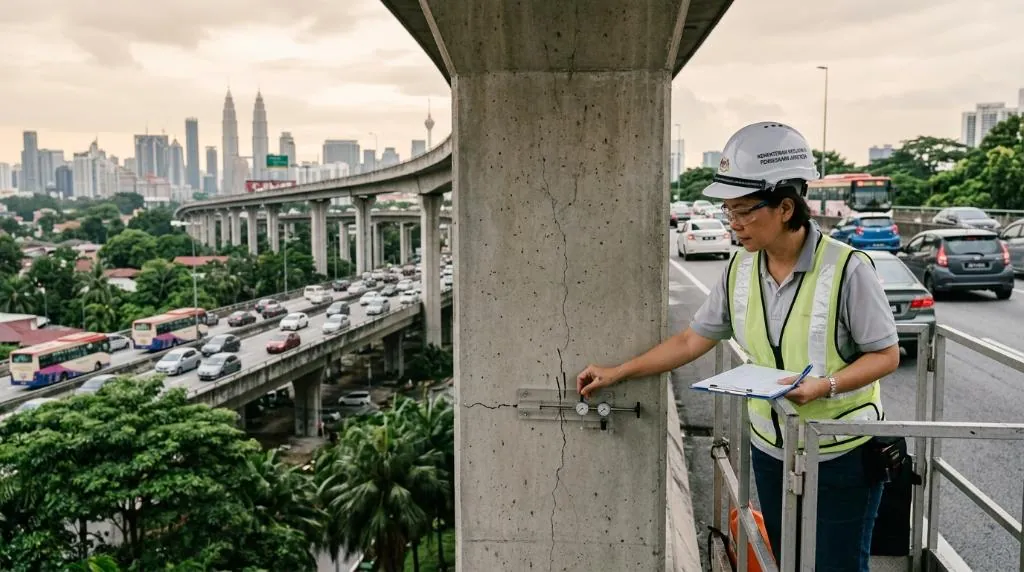

Standard manual inspections of tall viaducts, transit spans, and over-river crossings carry significant safety hazards and operational downtime. Contemporary bridge asset engineering relies on non-destructive testing (NDT) combined with aerial close-up assessments.

To safely evaluate hard-to-reach superstructure cantilevers, cable anchors, and tall piers without prolonged lane closures, operators deploy specialized Façade & Roof Inspection (Drone) platforms equipped with high-resolution photogrammetry and thermal radiometry. Aerial thermography identifies sub-surface delamination and void formations in concrete long before spalling compromises exterior cover.

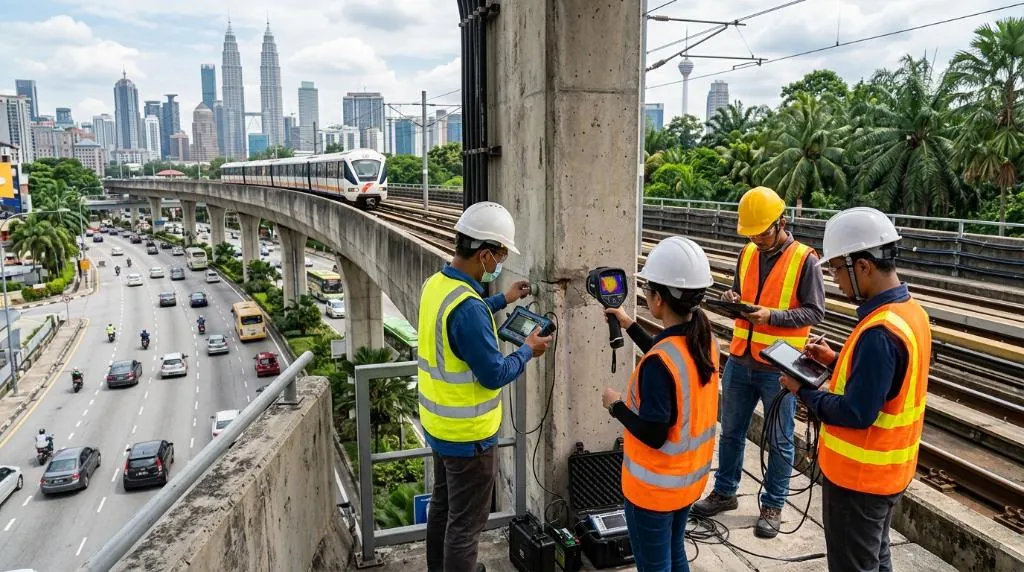

Complementing aerial overviews, qualified engineering teams execute rigorous on-site non-destructive evaluations, including:

• Ultrasonic Pulse Velocity (UPV): Measuring acoustic transit times to identify internal concrete honeycombing, voiding, and compressive strength variations.
• Half-Cell Potential Mapping: Measuring electrical potential gradients across reinforced concrete to detect active corrosion activity in rebar cages prior to rust staining.
• Carbonation Depth Profiling: Utilizing phenolphthalein indicators on core samples to assess concrete cover neutralization from atmospheric carbon dioxide exposure.
• Covermeter & Rebar Scanning: Electromagnetic pulse induction to map rebar spacing, cover depth, and detect bar displacement.

5. Proactive Maintenance & Structural Rehabilitation Strategies

Data without structured engineering intervention yields little value. Once structural anomalies are mapped inside the BMS, strategic structural interventions must be executed in accordance with sound engineering principles. Where adjacent construction work, tunneling, or heavy deep-basement excavation threatens surrounding elevated assets, conducting a certified Dilapidation Survey provides baseline structural condition documentation to establish liability and track movement.

When structural degradation or load rating deficiencies are detected, asset managers should collaborate with an experienced Structural Repair Consultancy to design specialized remediation protocols, which include:

• Carbon Fibre Reinforced Polymer (CFRP) Strengthening: Applying high-tensile CFRP laminates or wraps to girders and pier caps to restore flexural and shear capacity without adding excessive dead weight.
• Polyurethane and Epoxy Pressure Grouting: Injecting low-viscosity, structural thermoset epoxies under controlled pressure into dormant cracks to re-establish structural monolithic integrity and block moisture ingress.
• Cathodic Protection Systems: Installing sacrificial zinc anodes or impressed current cathodic protection (ICCP) systems for bridges exposed to marine spray or continuous dampness.
• Bearing Replacement & Expansion Joint Rehabilitation: Performing synchronized hydraulic jacking of superstructures to replace degraded elastomeric or pot bearings and prevent secondary stresses from locking expansion gaps.

By shifting from crisis-driven repairs to an automated, condition-based Bridge Management System, Malaysian asset custodians safeguard vital transport arteries, guarantee compliance with national safety laws, and maximize infrastructure investment returns.
