Thermal Bridge Inspection in Malaysia: Technical Safety Guide

By Ir Vimal, Professional Engineer | October 5, 2026

With Malaysia’s rapid expansion of elevated expressways, light rail transit viaducts, and arterial flyovers across the Klang Valley, Penang, and Johor Bahru, structural bridge integrity has emerged as a critical civil engineering priority. Traditional diagnostic methods relying on mobile elevated work platforms (MEWPs), under-bridge inspection units (UBIUs), and subjective visual observation frequently fail to detect subsurface voiding, trapped water pockets, or concrete delamination before spalling occurs.

To modernize civil infrastructure asset preservation across Malaysian highway networks, Pro Inspect Solution conducts high-precision aerial infrared thermography. Non-destructive drone thermal scanning empowers structural engineers, highway concessionaires, and municipal asset managers to locate latent structural vulnerabilities rapidly, safely, and without disruptive lane closures.

Table of Contents

• 1. The Imperative for Infrared Bridge Inspections in Malaysia
• 2. Thermodynamic Principles of Concrete Infrared Thermography
• 3. Critical Structural Bridge Defects Detected via Thermal Imaging
• 4. Operational Engineering Case Study: Damansara Elevated Viaduct
• 5. Aerial Drone Thermography vs. Conventional Inspection Techniques
• 6. Statutory Compliance & JKR/LLM Recommended Inspection Framework
• 7. Mitigating Tropical Climate & Emissivity Anomalies in Malaysia
• 8. Advanced Technologies: AI Defect Segmentation & 4D BIM Digital Twins
• 9. Contact Certified Engineering Specialists
• 10. Frequently Asked Questions (FAQ)

1. The Imperative for Infrared Bridge Inspections in Malaysia

Bridges, flyovers, and elevated transit viaducts across Malaysia endure aggressive equatorial microclimates. Alternating cycles of high solar irradiation, severe monsoon deluges, and prolonged relative humidity accelerate concrete carbonation, moisture ingress, and thermal fatigue. Under dense cyclic traffic loads on busy corridors such as the Federal Highway, Damansara-Puchong Expressway (LDP), and New Klang Valley Expressway (NKVE), undetected micro-fissures can quickly evolve into structural spalling.

Conventional physical evaluations encounter severe operational limitations under local highway conditions:

• Severe Traffic Disruptions: Conventional snooper trucks and elevated cherry pickers require closing multiple live expressway lanes, generating traffic congestion and economic loss.
• Elevated Occupational Risks: Inspecting towering bridge piers, abutments, and hollow box girders exposes personnel to working-at-height and confined-space hazards regulated by the Department of Occupational Safety and Health (DOSH).
• Subsurface Invisibility: Visual tap tests identify flaws only after delamination has reached outer concrete layers, missing deep honeycombing, voiding around post-tensioning ducts, and moisture tracking under waterproofing membranes.

Integrating non-destructive aerial testing via calibrated Façade & Roof Inspection (Drone) platforms provides non-contact, high-resolution diagnostic imaging that identifies internal structural defects before catastrophic failure occurs.

2. Thermodynamic Principles of Concrete Infrared Thermography

Infrared thermography operates on differential transient heat transfer principles codified under international standards such as ASTM D4788 (Standard Test Method for Detecting Delaminations in Bridge Decks When Using Infrared Thermography). Dense, sound reinforced concrete functions as a uniform thermal heat sink, absorbing solar energy during peak diurnal solar exposure and releasing it into the atmosphere during nocturnal cooling.

When subsurface delaminations, voiding, or water channels develop within the concrete matrix, uniform heat conduction is interrupted:

• Subsurface Delaminations: Air gaps created by planar concrete fractures act as thermal insulators. During solar heating phases, the thin concrete layer above a delamination heats up much faster than surrounding sound concrete, manifesting as a localized radiometric “hot spot”. During rapid evening cooling, this isolated mass loses thermal energy faster, appearing as a distinct “cold spot”.
• Moisture Entrapment: Water has high volumetric heat capacity compared to dry concrete. Saturated concrete zones retain absorbed daytime thermal energy longer, displaying clear, quantifiable thermal contrast against dry sound structural sections.

By capturing radiant infrared emissions within the long-wave infrared spectrum (8 μm to 14 μm) using high-resolution radiometric sensors, Pro Inspect Solution converts raw thermal radiation into calibrated temperature maps for structural health evaluation.

3. Critical Structural Bridge Defects Detected via Thermal Imaging

Aerial radiometric thermography uncovers concealed bridge defects across prestressed and reinforced concrete elements, including:

• Subsurface Concrete Delamination: Internal shearing of concrete layers caused by rebar corrosion before exterior spalling takes place.
• Deck Waterproofing Membrane Failure: Moisture ingress and water retention between the asphalt wearing course and reinforced concrete deck slabs.
• Expansion Joint Seepage: Subsurface water percolation through damaged elastomeric seals, causing accelerated chloride attack on pier caps and bearing shelves.
• Internal Drainage Downspout Fractures: Obstructed or fractured internal downpipes inside hollow box girders that cause internal ponding, concrete softening, and reinforcement corrosion.
• Grout Voids in Post-Tensioning Ducts: Honeycombing and incomplete grout consolidation around high-tensile prestressing steel strands.

When high-severity structural defects are detected, our team provides targeted structural repair consultancy to determine residual load capacities and design carbon-fiber-reinforced polymer (CFRP) composite strengthening or specialized pressure-grouting interventions.

4. Operational Engineering Case Study: Damansara Elevated Viaduct

Pro Inspect Solution completed an aerial thermal diagnostic assessment on an elevated post-tensioned box girder highway flyover in Damansara, Selangor. Operating over an active urban transit corridor with over 85,000 vehicles daily, the drone-based methodology eliminated traffic disruptions while mapping previously inaccessible superstructure surfaces.

Engineering Survey Overview:

• Asset Configuration: Dual two-lane, 6-span continuous post-tensioned precast segmental concrete box girder structure.

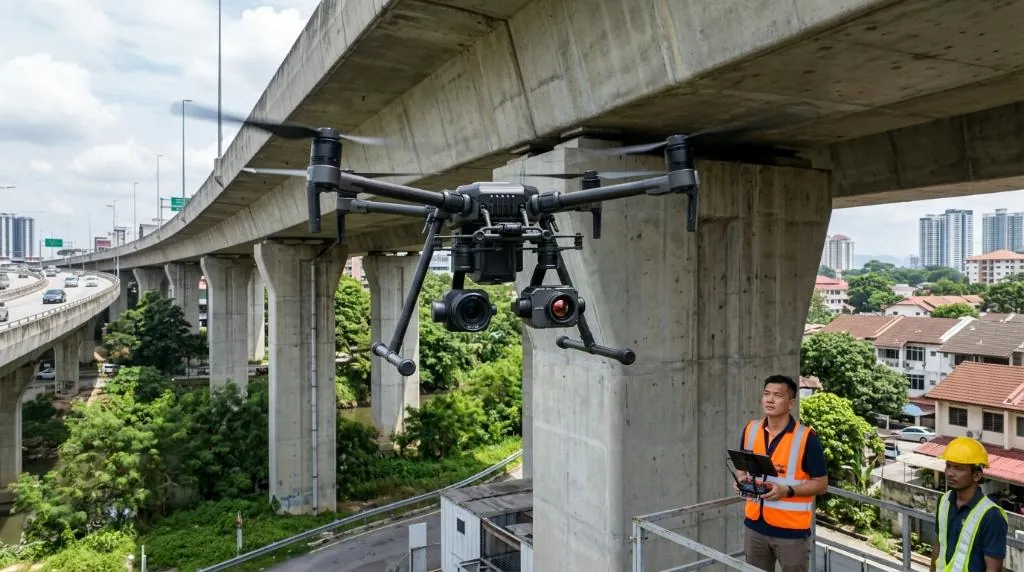

• Diagnostic Payload: Industrial UAV equipped with a high-resolution radiometric thermal sensor (640×512 pixels, ≤30 mK thermal sensitivity) synchronized with a 48 MP optical zoom camera.
• Environmental Timing: Flight windows were scheduled during peak transient thermal flux between 11:30 AM and 2:30 PM (ambient temperature 32°C to 34°C, solar irradiance >750 W/m²), followed by post-flight radiometric image processing.

Structural Defect Findings:

• Bottom Soffit Delaminations: Thermal imaging revealed three distinct thermal anomalies exceeding a +2.6°C differential against baseline sound concrete along the bottom soffit of Span 4, isolating 2.1 m² of subsurface delamination.
• Concealed Box Girder Drainage Leak: Radiometric scanning detected a cold thermal signature along the interior web of Pier 3, caused by an unseated internal drainage coupling discharging stormwater into the structural cell.
• Georeferenced Asset Cadastre: Every identified thermal anomaly was assigned sub-meter RTK GNSS coordinates and compiled into CAD overlays for asset maintenance planning.

5. Aerial Drone Thermography vs. Conventional Inspection Techniques

Modern aerial infrared thermography provides significant technical and operational advantages over traditional mechanical and visual bridge inspections:

• Inspection Velocity: A 400-meter multi-span bridge viaduct can be scanned from deck to pier cap in 4 to 6 hours, compared to 4 to 6 working days required using boom lifts, scaffolding, and manual chain-dragging.
• Traffic Continuity: Drone flights operate from safe roadside staging perimeters, eliminating the need for traffic diversions or lane closures.
• Safety Enhancement: Completely eliminates high-risk manual work at height over live traffic, aligning with safety guidelines enforced by the Construction Industry Development Board (CIDB).
• Empirical Record Keeping: Calibrated radiometric imagery provides temperature matrices that can be archived and layered over successive years to track defect growth accurately.

For sensitive infrastructure situated near heavy piling, rail alignments, or highway widening schemes, thermal bridge audits can be deployed alongside a pre-construction dilapidation survey or post-handover Property Defect Inspection (DLP) to document baseline structural conditions and protect asset owners against third-party liability.

6. Statutory Compliance & JKR/LLM Recommended Inspection Framework

Engineering inspection reports submitted to municipal councils, the Malaysian Highway Authority (Lembaga Lebuhraya Malaysia – LLM), and the Public Works Department (JKR) under the Street, Drainage and Building Act 1974 (Act 133) must adhere to a verified inspection protocol:

1. Desk Study & Structural Archive Review: Review of structural as-built drawings, post-tensioning schedules, historical repair records, and design loading criteria.
2. Pre-Flight Permitting & Regulatory Clearance: Flight clearance and authorization coordinated with the Civil Aviation Authority of Malaysia (CAAM) and local highway concessionaires.
3. Environmental Sensor Calibration: On-site measurement of ambient air temperature, relative humidity, wind speed (≤15 km/h), and baseline surface emissivity to calibrate thermal radiometry.

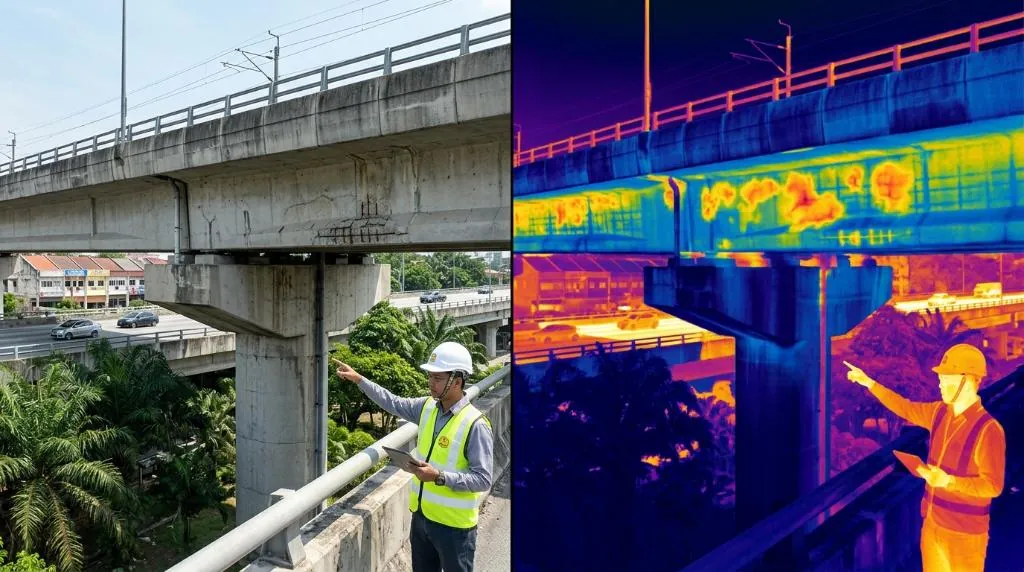

4. Synchronized Dual-Spectrum Scanning: Concurrent capture of high-resolution visual and radiometric thermal data maintaining perpendicular angles of incidence (≤30° off-axis).
5. Thermal Radiometric Data Normalization: Atmospheric transmission correction, solar angle adjustment, and elimination of false anomalies generated by surface staining or structural shadowing.
6. Defect Risk Stratification: Grading anomalies by temperature differential (ΔT > 1.5°C classified as moderate delamination; ΔT > 3.0°C classified as critical separation requiring immediate remedial shoring).
7. Professional Engineer Endorsement: Compilation of a formal condition assessment report signed off by a Professional Engineer, detailing anomaly dimensions, risk matrices, and targeted repair recommendations.

7. Mitigating Tropical Climate & Emissivity Anomalies in Malaysia

Performing infrared thermography in tropical environments requires careful control of atmospheric and environmental variables:

• High Atmospheric Humidity: Ambient moisture scatters and absorbs infrared radiation. Inspections must be performed within calibrated flight envelopes using narrow-band long-wave sensors to minimize atmospheric attenuation.
• Convective Storms & Evaporative Cooling: Tropical rain cools concrete surfaces rapidly, resetting thermal gradients. Inspections must be suspended during wet weather and resumed only after concrete substrates have completely dried.
• Surface Emissivity Variations: Traffic grime, tire rubber, paint markings, and biological growth alter surface emissivity, creating deceptive thermal signatures. Dual-spectrum radiometric processing tools cross-reference visual 4K imagery to eliminate false positives.

8. Advanced Technologies: AI Defect Segmentation & 4D BIM Digital Twins

The integration of aerial thermography, LiDAR point clouds, and artificial intelligence is reshaping civil infrastructure management across Malaysia. Pro Inspect Solution is deploying next-generation diagnostic workflows:

• Machine Learning Defect Segmentation: Convolutional neural networks trained on tropical concrete defect libraries automate the detection of cracks, spalls, and delaminations across large image sets.
• 4D BIM & Asset Digital Twins: Georeferenced radiometric data layers are mapped directly onto 3D building information models, providing asset managers with interactive thermal twins to monitor structural health over time.
• Life-Cycle Maintenance Budgeting: Predictive digital models allow highway concessionaires to forecast structural degradation patterns and shift budgets from emergency interventions to planned asset maintenance.

10. Frequently Asked Questions (FAQ)

How deep can infrared thermography detect concrete delaminations in bridges?

Calibrated radiometric thermal sensors operating under ASTM D4788 standards can reliably identify subsurface concrete delaminations, air pockets, and honeycombing at depths between 50 mm and 75 mm below the surface, provided an active thermal gradient of at least ±1.5°C to 2.0°C is present between sound and defective concrete.

What weather conditions are required for bridge thermal drone surveys in Malaysia?

Accurate surveys require clear or partly cloudy conditions with sustained solar radiation (>500 W/m²), wind speeds below 15 km/h, and completely dry structural surfaces. Flight operations are scheduled during late morning peak solar absorption or during rapid post-sunset cooling when thermal differentials are most distinct.

Are thermal drone bridge inspection reports recognized by JKR and LLM?

Yes. When executed following standardized engineering protocols and endorsed by a registered Professional Engineer, non-destructive drone inspection reports are accepted by JKR, LLM, and local municipal authorities as formal technical documentation for structural audits and remedial works.

How does drone thermography prevent live expressway lane closures?

Industrial drones equipped with optical zoom and high-resolution thermal sensors capture detailed structural data while maintaining safe standoff distances from live traffic lanes. Data acquisition is conducted from safe ground staging areas, avoiding lane closures and traffic disruptions.
