KUALA LUMPUR, Malaysia — August 8, 2026
A recent spotlight on home improvement published by EdgeProp.my titled “Essential tips for first-time renovations in Malaysia” highlighted a critical challenge facing property owners: many embark on major alterations without accurate dimensional technical drawings. Whether modifying a 20-year-old double-storey terrace house in Petaling Jaya, expanding a kitchen in Subang Jaya, or fitting out a commercial lot in Bangsar, thousands of Malaysian property owners face unexpected structural hurdles and severe bureaucratic delays due to improper technical documentation.
Navigating the local approval process requires far more than aesthetic interior renderings. Securing statutory permits from local municipal councils (Pihak Berkuasa Tempatan or PBT) such as DBKL, MBPJ, MBSA, or MBSJ mandates precise, code-compliant floor plans. In this comprehensive engineering guide, I outline how to properly obtain reliable AutoCAD floor plans renovation Malaysia property owners can trust to safeguard their investments, pass council review, and avoid structural structural failures.
1. The EdgeProp Catalyst: Why CAD Floor Plans Are Mandatory
The EdgeProp.my report underlines that first-time homeowners frequently underestimate the legal and technical baseline required before hacking a single brick. In Malaysia, structural remodeling or unit extensions fall squarely under Section 70 of the Street, Drainage and Building Act 1974 (Act 133). Executing alterations without approved property renovation drawings exposes owners to compounding daily fines, stop-work notices, and complications during future property valuations or sales transactions.
To obtain approval, local councils require CAD drawings mapped to exact spatial realities. Relying on hand-drawn sketches or contractor estimates often leads to site errors, material wastage, and regulatory non-compliance.
2. Why Developer Sales Brochures Fail Local Council Review
A common mistake among Malaysian homeowners is supplying their original developer sales brochure or hand-drawn floor plan to an architect or draughtsman. While these brochures illustrate space distribution, they lack critical engineering data:
- Scale Discrepancies: Marketing materials are drawn “not to scale” for artistic clarity, ignoring wall thickness variations between party walls and internal non-structural partitions.
- Missing As-Built Modifications: Previous owners may have re-routed electrical conduits, concealed RC columns, or altered wet area boundaries without updated records.
- Structural Omissions: Developer floor plans rarely indicate transfer beams, structural lintels, or shear wall boundaries governed by Malaysian Standards (MS).
This is where an expert as-built survey & drawing service becomes crucial. It bridges the gap between conceptual intent and actual physical reality on-site.
3. The Engineering View: Load Paths, Setbacks, and UBBL 1984
From a professional engineering perspective at Pro Inspect Solution, drafting 2D drawings is not merely about drawing lines in software; it is about establishing structural safety and compliance with the Uniform Building By-Laws (UBBL) 1984.
When preparing AutoCAD floor plans renovation Malaysia projects require, several technical factors must be verified on-site:
A. Building Setbacks and Boundary Line Clearances
Every municipal council imposes strict setback regulations under the Ministry of Housing and Local Government (KPKT) guidelines. For residential terrace units, front setbacks typically mandate 20 feet from the gate line, while rear setbacks require 5 to 10 feet for ventilation and fire escape routes. An accurate survey guarantees your planned extensions do not breach municipal boundary limits.
B. Load-Bearing Structure Identification
In older Malaysian homes (built during the 1980s and 1990s), unreinforced brick walls often carry localized roof truss loads. Hacking these walls without verifying load paths can trigger ceiling sagging or structural cracking in adjacent party walls. In contrast, modern high-rises utilize reinforced concrete (RC) shear walls that must never be core-drilled or hacked. Connecting with expert concrete technology consultancy ensures all structural elements are properly audited before drafting modification plans.
4. Step-by-Step: Conducting a 2D Floor Plan Survey in Malaysia
To produce an authentic, council-ready 2D CAD floor plan, professional building inspectors follow a rigorous multi-stage engineering workflow:

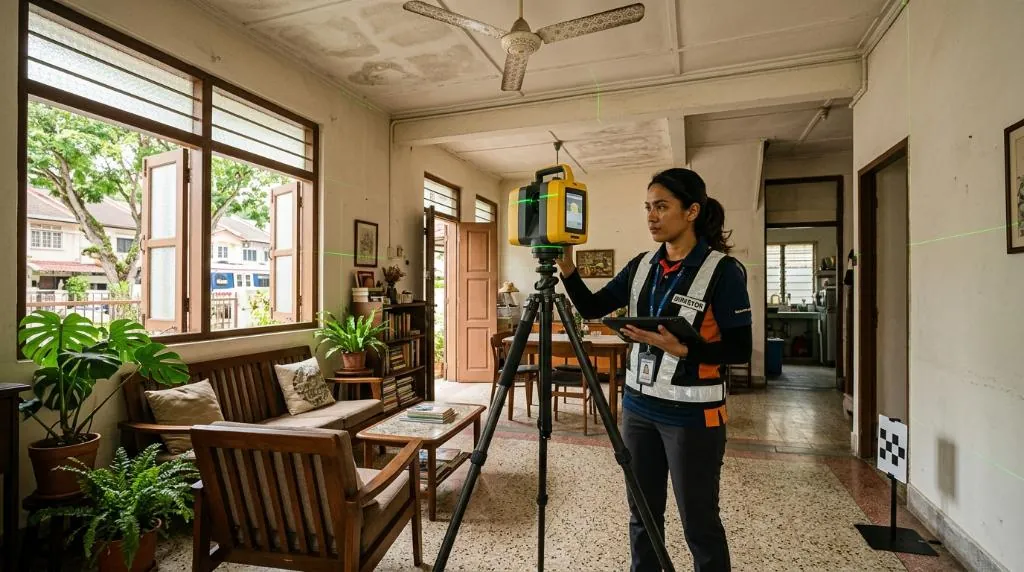

Step 1: On-Site Digital Laser Scanning & Dimensional Verification
Using Class II handheld laser distance meters and 3D LiDAR scanners, spatial dimensions are captured across every room. Measurements include ceiling height clearances, column offsets, door jamb dimensions, and window opening drops.
Step 2: Structural Element & Service Mapping
Inspectors identify structural columns, beam positions, floor drop zones (bathrooms/kitchens), structural party walls, and main plumbing stack routes. Mapping these details ensures the resulting as-built floor plan service output contains complete technical data for engineering review.

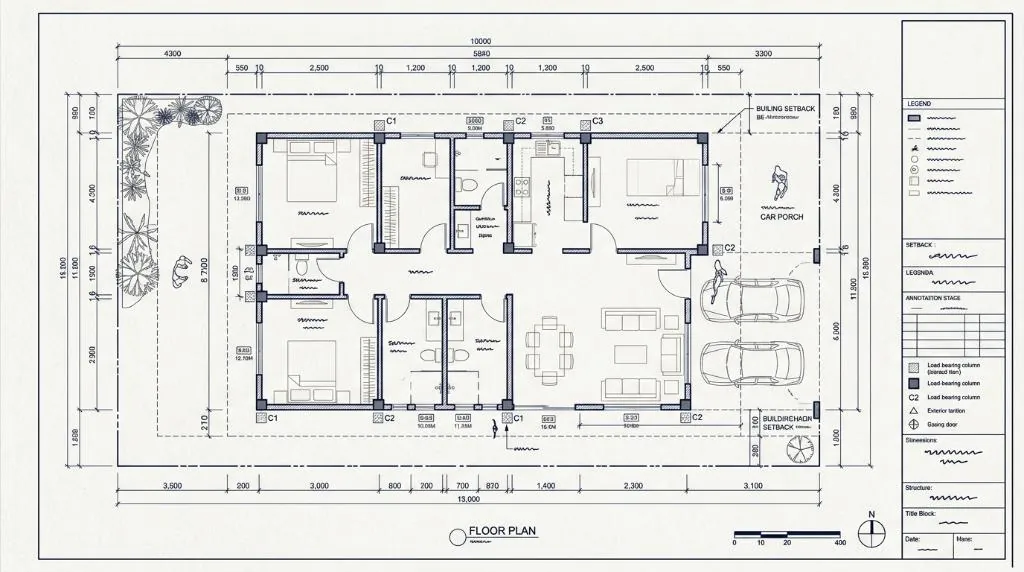

Step 3: Vector Drafting in AutoCAD (DWG Format)
The raw field survey data is converted into clean 2D AutoCAD vector files (.DWG format) compliant with Malaysian architectural standards (MS 1064). Layers are organized into distinct categories: structural walls, non-structural partitions, dimension lines, sanitary fixtures, electrical outlets, and grid lines.
5. Navigating Local Council Renovation Submission Mechanics
Once your CAD floor plans are mapped, they form the foundation for your local council renovation submission. In Selangor and Kuala Lumpur, submissions are processed through digital portals such as the OSC 3.0 Plus system or MBPJ’s eBuilding system.
Key Deliverables Required for PBT Submission:
- Location & Site Plan: Scaled context map showing adjacent lot numbers and drainage paths.
- Existing As-Built Floor Plans: Showing the original state before modifications.
- Proposed Remodeling Floor Plans: Indicating demolished walls (in hatched red lines) and new construction (in yellow/blue shading).
- Cross-Sectional & Elevation Drawings: Verifying floor-to-ceiling heights, roof pitches, and natural lighting ratios (UBBL By-law 39 requires natural lighting to equal at least 10% of total floor area).
Engaging a specialized team for property renovation drawings streamlines this technical process, preventing application rejections and unnecessary resubmission fees.
6. Insider Reality: Hacking Masonry vs. Shear Wall Integrity
In our field inspections across Selangor and Kuala Lumpur, Pro Inspect Solution frequently identifies costly structural defects caused by contractors operating without proper technical drawings. A common issue occurs when contractors mistake a load-bearing stiffener column for a partition wall and proceed to hack it away.
Removing structural masonry without installing temporary shoring or steel lintels leads to beam deflections exceeding permissible limits set by BS 8110 / MS EN 1992. Over time, upper-floor masonry develops diagonal shear cracks, door frames bind, and floor tiles pop due to structural movement. Performing a comprehensive concrete technology consultancy review alongside precise CAD drafting safeguards structural integrity and protects building occupants.
7. Frequently Asked Questions (FAQ)
Why cannot I use the original developer brochure layout for local council submission?
Developer brochures are stylized marketing graphics. Local authorities require precise millimeter-accurate 2D AutoCAD floor plans detailing structural load paths, setbacks, and wall thicknesses under UBBL 1984.
How long does a 2D floor plan survey in Malaysia take for a terrace house?
An on-site laser survey takes 2 to 4 hours, and processing into compliant 2D AutoCAD drawings takes 3 to 5 working days.
What happens if I start renovation without local council (PBT) approval?
Under Section 70 of Act 133, unauthorized works risk stop-work orders, compounding fines up to RM25,000, or legal orders to demolish non-compliant structures.
Does an interior design 3D rendering replace a 2D AutoCAD floor plan drawing?
No. 3D renderings are visual concepts. Local councils strictly require scaled vector AutoCAD drawings showing structural columns, wall dimensions, drainage, and setback boundaries.
